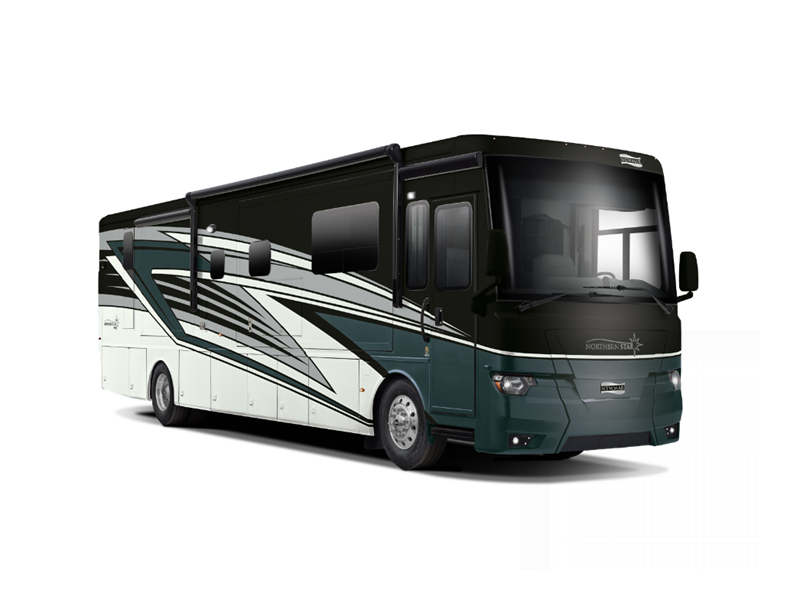

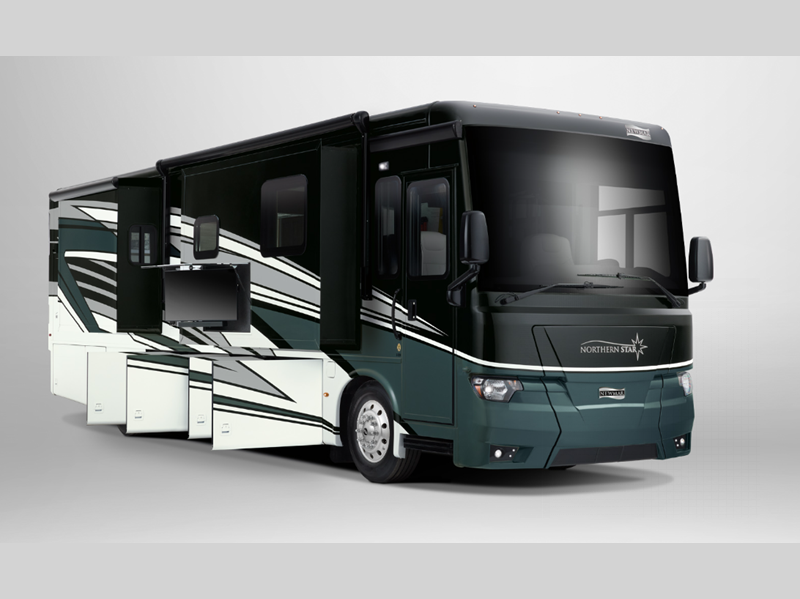

Newmar introduces the Northern Star to their Class A diesel lineup, a coach packed with features that makes it easy to call it home! The durable Freightliner chassis and Cummins B diesel engine with 360 HP will power your adventures both near and far.



You will love the full-paint Masterpiece Finish that is available in three color options, along with three decor and wood cabinetry stain options to put your own touch on your coach. Six-way power captain's seats will provide comfort as you travel down the highway, and the Mobileye lane tracking and lane departure warning system will help keep you safe. There is generous storage outside, along with a Carefree Travel'r awning, smart level hydraulic leveling jacks, and many more exterior conveniences. With models ranging from 34 feet to 40 feet in length, and even a wheelchair accessible model, you're sure to find your Northern Star.



The Northern Star Class A diesel motorhome is Newmar's most affordable diesel pusher in their lineup; choose your favorite layout today!

  • Northern Star 3418

    Northern Star 3418 Floorplan Image

    Newmar Northern Star Class A diesel motorhome 3418 highlights: Four Slide Outs ... more about Northern Star 3418

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 34 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Ashford, Nola, Solano

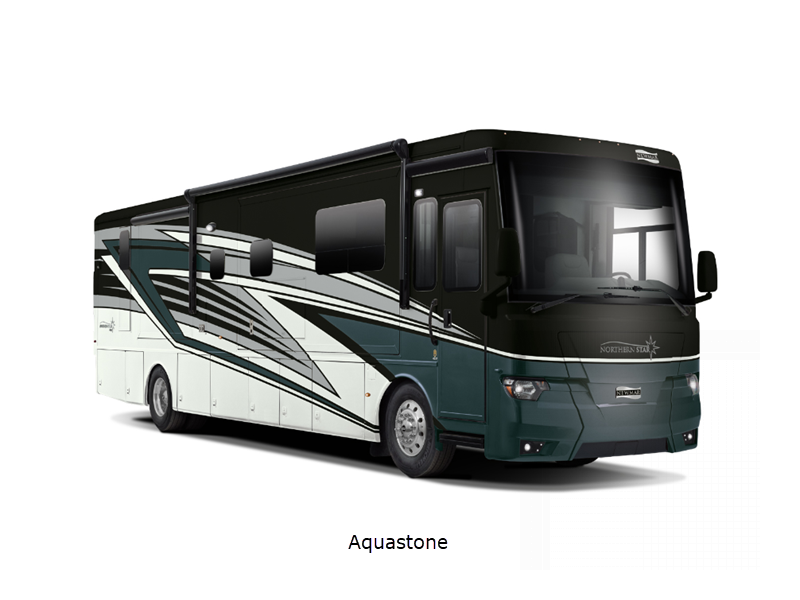

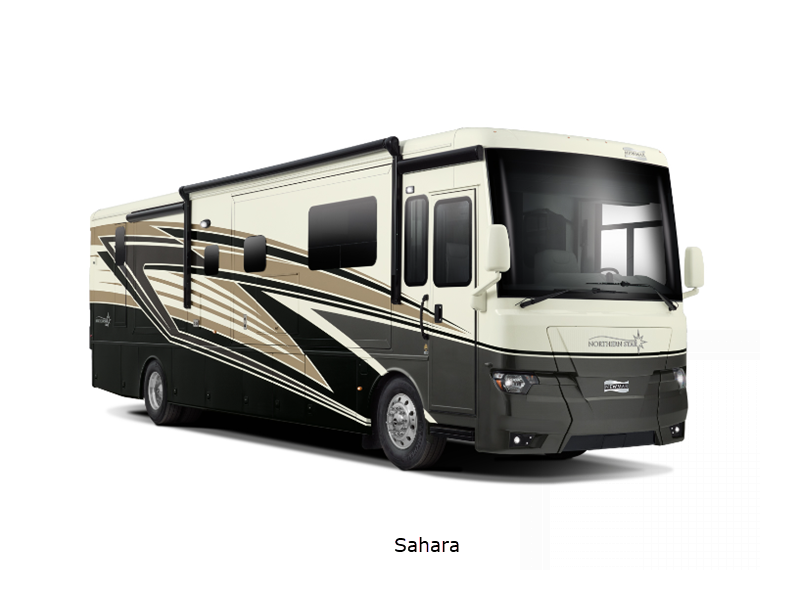

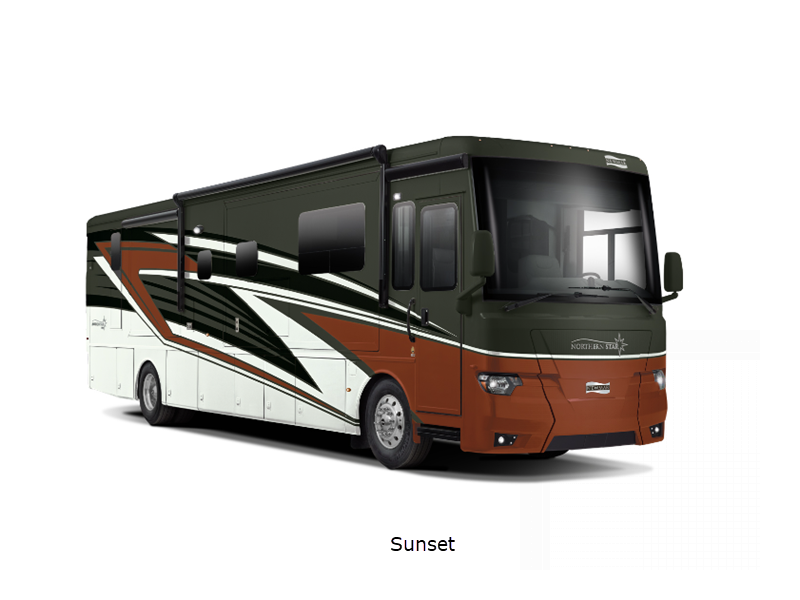

    Exterior Color Aquastone, Sahara, Sunset
    Hitch Weight 10000 lbs
    GVWR 36500 lbs
    Dry Weight 29200 lbs
    Cargo Capacity 7300 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 45 gals
    Furnace BTU 35000 btu
    Generator 8.0 kW Cummins Onan Quiet Series
    Fuel Type Diesel
    Engine 6.7L Cummins B
    Chassis Freightliner XCR
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 206 in
    Available Beds Queen
    Torque 800 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 40" x 30"
    Number of Awnings 1
    Axle Weight Front 13500 lbs
    Axle Weight Rear 23000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info Samsung LED TV; BR, LR
    Awning Info Carefree Travel'r Power w/Alumaguard and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46500 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Northern Star 3709

    Northern Star 3709 Floorplan Image

    Newmar Northern Star Class A diesel motorhome 3709 highlights: Full-Wall Slide ... more about Northern Star 3709

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 37 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 11 in
    Interior Color Ashford, Nola, Solano
    Exterior Color Aquastone, Sahara, Sunset
    Hitch Weight 10000 lbs
    GVWR 38000 lbs
    Dry Weight 30600 lbs
    Cargo Capacity 7400 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 45 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Quiet Series
    Fuel Type Diesel
    Engine 6.7L Cummins B
    Chassis Freightliner XCR
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 242 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 14000 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info Samsung LED TV; BR, LR
    Awning Info Carefree Travel'r Power w/Alumaguard and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 48000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Northern Star 4011

    Northern Star 4011 Floorplan Image

    Newmar Northern Star Class A diesel motorhome 4011 highlights: Roll-Under Bath ... more about Northern Star 4011

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 3
    Length 40 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 11 in
    Int Height 6 ft 11 in
    Interior Color Ashford, Nola, Solano
    Exterior Color Aquastone, Sahara, Sunset
    Hitch Weight 10000 lbs
    GVWR 39000 lbs
    Dry Weight 31000 lbs
    Cargo Capacity 8000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 45 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Quiet Series
    Fuel Type Diesel
    Engine 6.7L Cummins B
    Chassis Freightliner XCR
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 276 in
    Available Beds Queen
    Torque 800 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 48" x 36"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info Samsung LED TV; BR, LR
    Awning Info Carefree Travel'r Power w/Alumaguard and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 49000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Northern Star 4037

    Northern Star 4037 Floorplan Image

    Newmar Northern Star Class A diesel motorhome 4037 highlights: Bath and a Half ... more about Northern Star 4037

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 40 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 11 in
    Int Height 6 ft 11 in
    Interior Color Ashford, Nola, Solano
    Exterior Color Aquastone, Sahara, Sunset
    Hitch Weight 10000 lbs
    GVWR 39000 lbs
    Dry Weight 32000 lbs
    Cargo Capacity 7000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 45 gals
    Furnace BTU 54000 btu
    Generator 8.0 kW Cummins Onan Quiet Series
    Fuel Type Diesel
    Engine 6.7L Cummins B
    Chassis Freightliner XCR
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 276 in
    Available Beds King
    Torque 800 ft-lb
    Refrigerator Type Norcold with Stainless Steel Front
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 50" x 30"
    Number of Awnings 1
    Axle Weight Front 15000 lbs
    Axle Weight Rear 24000 lbs
    LP Tank Capacity 32 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    Awning Info Carefree Travel'r Power w/Alumaguard and LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 49000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Northern Star Features:

Standard Features (2025)



Exterior

  • Full-Paint Masterpiece Finish™ with Clearcoat Finish
  • Diamond Shield Protection on Front Cap
  • Convex Exterior Mirrors with Remote Control and Defrost
  • Entrance Door with Automatic Step
  • Assist Handle at Entrance Door
  • Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touchpad
  • Mud Flaps

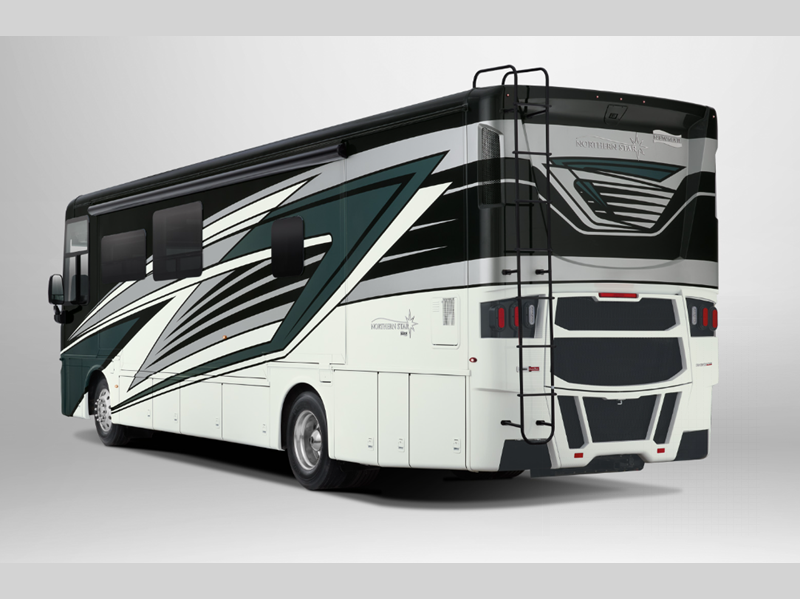

  • Rear Ladder*
  • Rear Hitch for Towing Car
  • Undercoating
  • Wheelchair Lift on 4011 Floor Plan

Optional

  • Flagpole Bracket
  • Storage Tray 30" x 90" Power Location-Bay 3

Construction

  • Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
  • Aluminum-Frame Sidewalls and Roof Construction, 16" on Center
  • 5/8" Foam Insulation Laminated in Sidewalls and Ceiling
  • Polar Pak R19 Batten Insulation in Roof
  • One-Piece Molded Fiberglass Roof
  • Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
  • Power Opening Entrance Door for Wheelchair Lift on 4011 Floor Plan

Optional

  • Egress Door with Ladder System*

Chassis

  • Freightliner® Chassis with 360Hp
  • Aluminum Wheels
  • V-Ride Drive Axle Suspension
  • Cruise Control
  • Manual Tilt and Telescope Steering Wheel with VIP Smart Wheel
  • Recessed Fuel Fills with Crossover to Fill from Either Side
  • Anti-Lock Braking System
  • Chassis Battery Disconnect
  • Glass Dash Instrument Panel
  • Dash Panel Optiview
  • Headlights Automatic High Beam
  • Mobileye® Lane Tracking and Lane Departure Warning System

Mechanical and Electrical

Windows, Awnings & Vents

  • One-Piece Tinted Windshield
  • Frameless Double-Pane Tinted Safety-Glass Windows
  • Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
  • Skylight Above Shower
  • Carefree Travel’r Power Side and Entrance Door Awning with Alumaguard and LED Strip Lighting
  • Slideout Awning Covers
  • Kitchen Window
  • Entrance Door to Lock/Unlock Automatically with Park Brake

Optional

  • Screen Door Over Wheelchair Lift on 4011 Floor Plan

Air Conditioning & Heating

  • Two 15K BTU Penguin™ Heat Pump Air Conditioners
  • Propane Furnace with Ducted Heat
  • Dash Heater and Air Conditioner
  • Wall Mounted Sensors for Heating and Air Conditioning
  • Built-In Overhead Defroster Blower Fan

Optional

  • Electric Radiant Heat Installed Below Main Floor Tile

Electrical

  • 8.0 kW Cummins Onan® Diesel Quiet Series Generator
  • 50 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
  • Automatic Generator Start on Low Battery or Temperature Setting
  • Four 6-Volt House Batteries on Pull-Out Tray
  • Battery Disconnect Switch for House Battery
  • 2000w Pure Sine Inverter
  • Emergency Engine Start Switch
  • Energy Management System
  • Exterior Security Light on Doorside
  • Midship Side Turn Signals
  • LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
  • LED Awning Strip Lighting
  • Manually Operated Hold-To-Run Slideout Switch
  • 12-Volt Auxiliary Receptacle on Dashboard
  • USB Charger At Dinette and Bedroom Nightstand
  • USB Outlet at Dash for Driver Use
  • 110-Volt USB Outlet at Head of Each Bunk Area*
  • 110-Volt Recept in Bed Overhead with Two Pass-Through Ports
  • Engine Block Heater
  • Cable TV Connection
  • Lights in Exterior Storage Compartments
  • Interior Courtesy Lights
  • Spare Fuses in Chassis Fuse Panel and House Fuse Panel
  • Multiplex Monitor System 10.1" in Center of Coach with Interior Lighting and HVAC Controls
  • Power Rewind Reel with 33' Cord*
  • Dash Radio, Cameras and Monitors to Power-Up from both House Batteries and Ignition
  • Wireless Phone Charger for Driver

Optional

  • Transfer Switch with Surge Protector

Plumbing

  • Demand Water System
  • Sewage Holding-Tank Rinse
  • Water Heater Bypass System
  • Dometic® 321 China Bowl Stool or Macerator Stool*
  • Exterior Shower
  • Water Filter for Entire Unit

Interior

Cabinets & Furniture

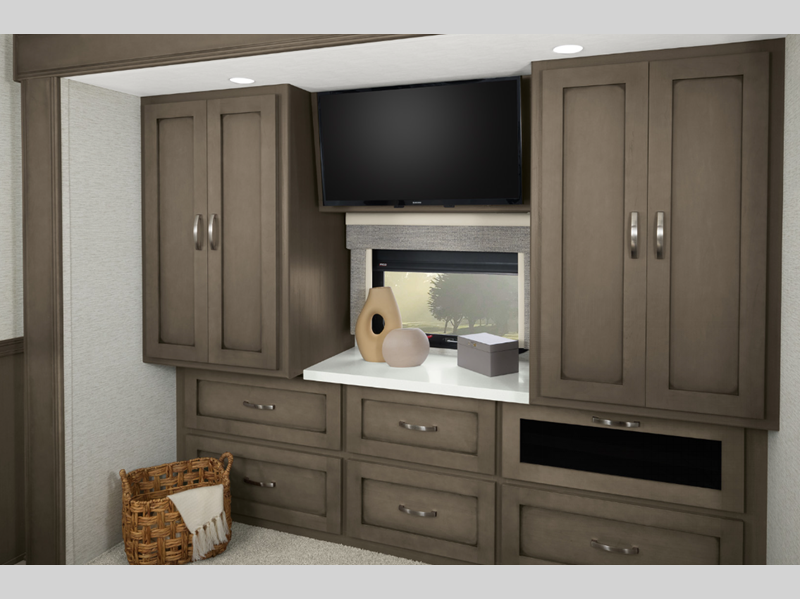

  • Dusk Maple Cabinets—Suede Finish
  • Concealed Hinges on Cabinet Doors
  • Drawers with Full Extension Ball Bearing Guides
  • Fixed Pantry Shelves
  • Cooktop Cover Flush, Matching Countertop Material
  • Polished Solid-Surface Countertop in Kitchen with Undermounted Sink and Sink Covers
  • Polished Solid-Surface Countertops in Bathroom and Bedroom

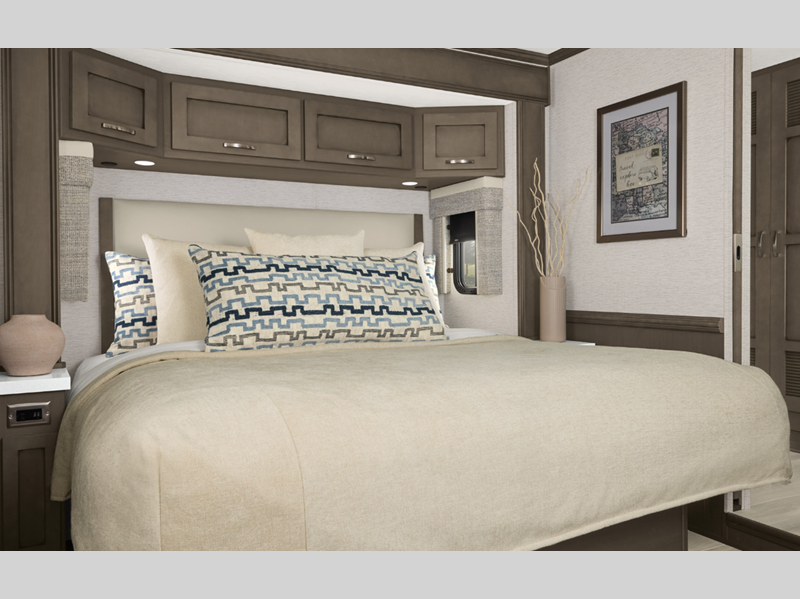

  • Plush Pillow Top Mattress
  • Lifts on Bed Top
  • Front Seats with Six-Way Power
  • Driver Seat with Vibrator for Mobileye® System
  • Manual Footrest on Passenger Seat
  • Desk with One Chair*
  • Dinette Booth Williamsburg Convertible*
  • Dinette with Power Adjustable Table, Bench Seat and Folding Chair on Wheelchair Accessible Floor Plan
  • Villa Comfort Fit Furniture
  • Mesh Cell Phone Holder at each Bunk Bed*
  • Extended Rotation Concealed Hinge for Washer and Dryer Cabinet Door

Optional

  • Chiffon Maple Cabinets—Suede Finish
  • Mesa Glazed Maple Cabinets—Suede Finish
  • Two-Tone Chiffon Maple and Dusk Maple Cabinets—Suede Finish
  • Two-Tone Chiffon Maple and Mesa Glazed Maple Cabinets—Suede Finish
  • Bunk Bed Drop-Down Over Driver and Passenger Seats—Extends to Windshield with Bunk Ladder*
  • Combination Desk with Buffet Dinette Table, Two Fixed and Two Folding Chairs
  • Euro Booth Dinette with Two Table Leaves, Removable Table Leg and Two Folding Chairs
  • 87" Sofa Hide-A-Bed with Memory Foam Mattress
  • 74" Sofa Visionary Trifold
  • R5 Square Corner Air Mattress
  • R5 Radius Corner Air Mattress
  • 74" Powered Theater Seating with Reading Lights and Lighted Cup Holders
  • 84" Powered Theater Seating with Reading Lights
  • 87" Powered Theater Seating with Reading Lights and Lighted Cup Holders
  • Two Recliners with Lampstand and Reading Lights
  • Full Height Bed Base on 4011 Floor Plan

Appliances

  • 30" Stainless Steel Convection Microwave with Three-Burner Cooktop and Air Fryer Feature
  • 10 Gallon Gas/Electric Water Heater with Direct-Spark Ignition
  • Prep for Two-Piece Washer and Dryer
  • Air Horns
  • 10 Cu. Ft. Norcold® Refrigerator with Stainless Steel Front

Optional

  • 15 Cu. Ft. Norcold® Three-Door Refrigerator with Icemaker
  • 19.7 Cu. Ft. Whirlpool® Refrigerator, Two Extra 6-Volt Batteries and 22 Gallon Propane Tank
  • 19.7 Cu. Ft. Whirlpool® Refrigerator, Two Extra 6-Volt Batteries and 22 Gallon Propane Tank and Heated Water Line
  • 11 Cu. Ft. Whirlpool® Refrigerator, Extra 6-Volt Batteries and 22 Gallon Propane Tank
  • 11 Cu. Ft. Whirlpool® Refrigerator, Extra 6-Volt Batteries, 22 Gallon Propane Tank and Icemaker
  • 30" Stainless Steel Convection Microwave with Air Fryer Feature in Kitchen Overhead
  • Splendide® Two-Piece Stacked Washer and Dryer
  • Fireplace in Living Area*
  • Central Vacuum with Tool Kit
  • Truma Comfort Plus Continuous Hot Water Heater

Interior

  • Dash Panel Color Coordinated ABS
  • Interior Assist Handle at Main Entry Door
  • Power Stepwell Cover
  • Inlayed Six Panel Design Interior Passage Doors
  • Decorative Wall Art
  • Padded Vinyl Ceiling Panels
  • Tile Floor in Kitchen, Bathroom and Living Area
  • Carpeting on Slideout Floors
  • MCD Window Shades
  • MCD Power Shades at Windshield and Manual Shades on Driver and Passenger Side Windows
  • Fitted Cam-Quilted Bedspread with Picture Frame Accent and Accent Pillow
  • Wastebasket in Kitchen Base Under Sink

Optional

  • MCD Power Window Shades with Remote Control on 4011 Floor Plan

Entertainment

  • Samsung® LED TV in Living and Bedroom Areas, TV Sizes Vary per Floor Plan*
  • 50" Samsung® 4K LED Televator TV in Living Area, on Selected Floor Plans*
  • 50" Samsung® on Televator with Fireplace on 4011 Floor Plan
  • Dash Radio with Harman/JBL 180w Sound System and Subwoofer

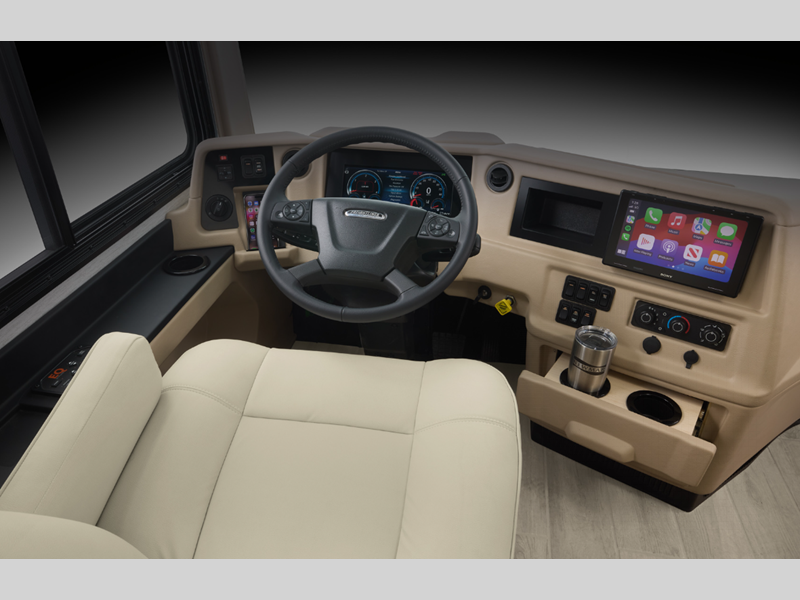

  • 10" Sony Dash Radio with Rear Coach Viewing, Apple CarPlay® and Android Auto™
  • Bluetooth Microphone for Dash Radio
  • Rearview Color Monitor System with Audio
  • Side-View Cameras Displayed on Rearview Monitor Screen
  • Winegard Digital Crank Up TV Antenna
  • Satellite Prep on Roof
  • TV Jack and 110-Volt Recept in Door Side Exterior Storage Compartment
  • High-Definition Component Wiring
  • Bose® Soundbar Sound System
  • 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
  • Optional
  • 32" Samsung® LED TV in Front Overhead*
  • Exterior Entertainment Center in Sidewall with 43" Samsung® LED TV and Soundbar

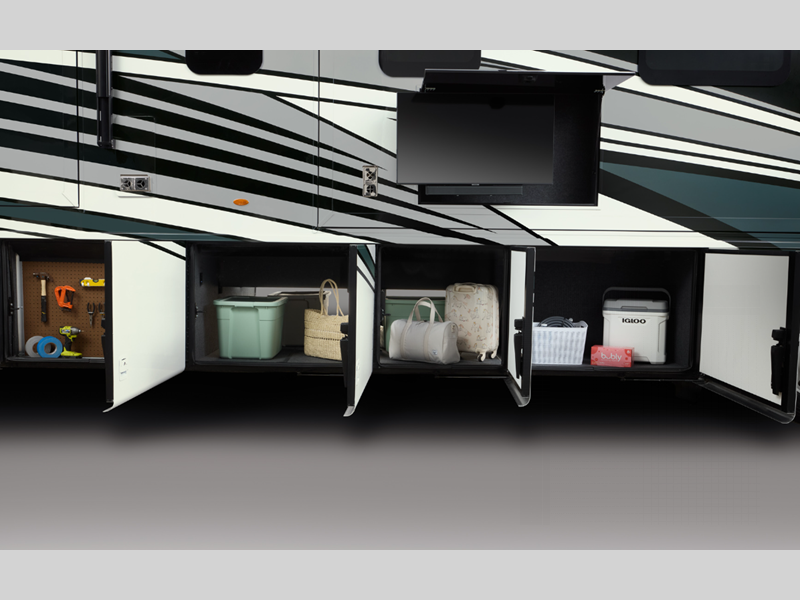

  • Exterior Entertainment Center in Storage Compartment with 43" Samsung® LED TV and Soundbar
  • SiriusXM® Capability with Antenna (Does Not Include Monthly Subscription)
  • WiFiRanger Denali/Spruce LTE
  • WiFi System Everest with Aspen Interior Router
  • Winegard Automatic Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
  • Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
  • Winegard Automatic Open Face SWM Satellite Dish-DIRECTV Std/HD
  • Winegard In-Motion Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
  • Winegard Rayzar Automatic Digital TV Antenna
  • Starlink Internet System

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Newmar Logo

Newmar is a company built around the Christian faith, specifically the beginning of the Mennonite faith in 1525 under the guidance of Ulrich Zwingli, and the founding of the Amish fellowship under Jacob Amman in 1693.



At Newmar, we believe that a motor coach is more than just a vehicle, it’s a passport to countless hours of fun and a lifelong memories taken from quality time spent with family and friends.



For over 50 years, we’ve applied our principles to the creation of motor coaches that have allowed people all over the world to live the RV lifestyle. And we’ll continue to so for countless generations to come. It’s why we take pride in every rivet, weld, and mechanical function.

Value A Trade  Close

Provide us with some basic info and we’ll appraise your RV.

Tell us about the RV you currently own:

(Anything else we should consider?)

Tell us about the RV you're looking for:

Contact Information:



By submitting, you opt in to receive email and texting communication from Lazydays RV.


(Easily unsubscribe at any time.)
* Required field


Confirmation
Thank You, !

Your message was sent successfully

A representative has been notified and will be with you shortly.

Close
