Step up to the diesel pusher lifestyle in a Palazzo Class A diesel motorhome by Thor Motor Coach! This coach includes luxury features, innovative technology, and floorplans that suit your lifestyle, so come take a look!



Each model sits on a Freightliner XC-S straight-rail chassis with an Atlas foundation that will provide better fuel mileage, more storage, and an overall better ride. The 10" touchscreen dash radio with Bluetooth, Navigation and Sirius/XM prep ensures you won't have to stop for directions, plus there are leatherette reclining and swivel captain's chairs for your comfort. Head to the kitchen to find solid surface countertops and a French door residential refrigerator, then check out the full bath with an oversized shower and a power vent. The bedroom will be calling your name with a Tilt-A-View inclining bed, and you'll appreciate USB ports in the nightstands for your tablet or phone.



Your best memories to be made are waiting for you in a Palazzo Class A diesel motorhome by Thor Motor Coach. Choose yours today!



  • Palazzo 33.5

    Palazzo 33.5 Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Palazzo Class A diesel motorhome 33.5 highlights: Tilt-A-View ... more about Palazzo 33.5

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 34 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 3 in
    Int Height 6 ft 10 in
    Interior Color Bocca, Vercelli, Studio Collection Dolce
    Exterior Color Full Body Paint; Crystal Downs, Pacific Dunes, Riviera, Winged Foot
    Hitch Weight 10000 lbs
    GVWR 26000 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 255/70R 22.5
    Furnace BTU 35000 btu
    Generator Onan RV QD 6,000 Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XC-S Straight Rail
    Horsepower 300 hp
    Fuel Capacity 90 gals
    Wheelbase 208 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 660 ft-lb
    Refrigerator Type French Door Residential
    Refrigerator Size 15.7 cu ft
    Convection Cooking Yes
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 105 lbs
    Water Heater Type Tankless
    Basement Storage 126 cu. ft.
    TV Info LR 39" LED Smart, BR 32" LED, Ext. 40" LED
    Awning Info 18' Power Lateral Arm w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Palazzo 33.6

    Palazzo 33.6 Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Palazzo Class A diesel motorhome 33.6 highlights: Rear Private ... more about Palazzo 33.6

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 34 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 3 in
    Int Height 6 ft 10 in
    Interior Color Bocca, Vercelli, Studio Collection Dolce
    Exterior Color Full Body Paint; Crystal Downs, Pacific Dunes, Riviera, Winged Foot
    Hitch Weight 10000 lbs
    GVWR 26000 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 255/70R 22.5
    Furnace BTU 35000 btu
    Generator Onan RV QD 6000 Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XC-S Straight Rail
    Horsepower 300 hp
    Fuel Capacity 90 gals
    Wheelbase 208 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 660 ft-lb
    Refrigerator Type French Door Residential
    Refrigerator Size 15.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 105 lbs
    Water Heater Type Tankless
    Basement Storage 126 cu. ft.
    TV Info LR 39" LED Smart, BR 32" LED, Ext. 40" LED
    Awning Info 18' Power Lateral Arm w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Palazzo 37.4

    Palazzo 37.4 Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Palazzo Class A diesel motorhome 37.4 highlights: Pull-Out ... more about Palazzo 37.4

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 38 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 6 ft 10 in
    Interior Color Bocca, Vercelli, Studio Collection Dolce
    Exterior Color Full Body Paint; Crystal Downs, Pacific Dunes, Riviera, Winged Foot
    Hitch Weight 10000 lbs
    GVWR 32000 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 275/80R 22.5
    Furnace BTU 35000 btu
    Generator Onan RV QD 6000 Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XC-S Straight Rail
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 256 in
    Number Of Bunks 1
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type French Door Residential
    Refrigerator Size 15.7 cu ft
    Convection Cooking Yes
    Shower Size 36" x 30"
    Number of Awnings 2
    LP Tank Capacity 105 lbs
    Water Heater Type Tankless
    Basement Storage 170 cu. ft.
    TV Info LR 50" LED Smart TV, LR 39" LED Smart TV, BR 32" LED, Ext. 40" LED
    Awning Info Power Lateral Arm w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Palazzo 37.5

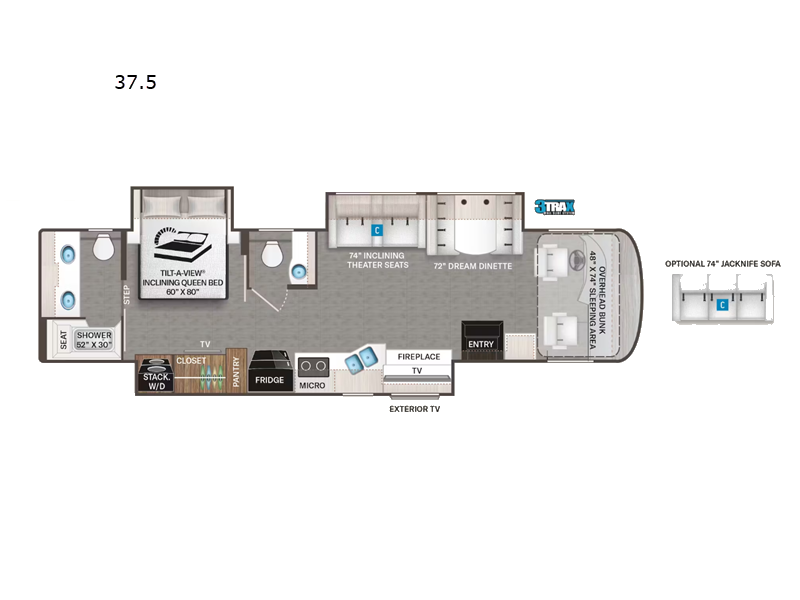

    Palazzo 37.5 Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Palazzo Class A diesel motorhome 37.5 highlights: Full-Wall ... more about Palazzo 37.5

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 38 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 6 ft 10 in
    Interior Color Bocca, Vercelli, Studio Collection Dolce
    Exterior Color Full Body Paint; Crystal Downs, Pacific Dunes, Riviera, Winged Foot
    Hitch Weight 10000 lbs
    GVWR 32000 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 57 gals
    Tire Size 275/80R 22.5
    Furnace BTU 35000 btu
    Generator Onan RV QD 6000 Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7L
    Chassis Freightliner XC-S Straight Rail
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 256 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type French Door Residential
    Refrigerator Size 15.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 105 lbs
    Water Heater Type Tankless
    Basement Storage 159 cu. ft.
    TV Info LR 50" LED Smart, BR 32" LED, Ext. 40" LED
    Awning Info 18' Power Lateral Arm w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard

    Similar Floorplans

  • Palazzo 37.6

    Palazzo 37.6 Floorplan Image

    Thor Motor Coach Palazzo Class A diesel motorhome 37.6 highlights: Triple Slides ... more about Palazzo 37.6

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 38 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 6 ft 10 in
    Interior Color Bocca, Vercelli, Studio Collection Dolce
    Exterior Color Full Body Paint; Crystal Downs, Pacific Dunes, Riviera, Winged Foot
    Hitch Weight 10000 lbs
    GVWR 32000 lbs
    Fresh Water Capacity 95 gals
    Tire Size 275/80R 22.5
    Furnace BTU 35000 btu
    Generator Onan RV QD 6000 Diesel
    Fuel Type Diesel
    Engine Cummins ISB 6.7
    Chassis Freightliner XC-S Straight Rail
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 256 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type French Door Residential
    Refrigerator Size 15.7 cu ft
    Cooktop Burners 2
    Shower Size 52" x 30"
    LP Tank Capacity 105 lbs
    Water Heater Type Tankless
    Basement Storage 130 cu. ft.
    TV Info LR 39" LED Smart TV, BR 32" LED TV, Ext. 40" LED TV
    Awning Info Power Lateral Arm w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Palazzo Features:

Standard Features (2024)



Construction and Exterior

  • Freightliner® XC-S Straight Rail Chassis with Atlas™ Foundation
  • Cummins® ISB 6.7L Diesel Engine with 300HP, 660 lb.-ft. Torque (33.5, 33.6)
  • Cummins® ISB 6.7L Diesel Engine with 340HP, 700 lb.-ft. Torque (37.4, 37.5, 37.6)
  • 160-amp, 12-volt Alternator
  • In-Block, 750-watt Engine Heater
  • 6-Speed Allison MH-2100 Automatic Transmission (33.5, 33.6)
  • 6-Speed Allison MH-2500 Automatic Transmission (37.4, 37.5, 37.6)
  • Full Air Front and Rear Drum Anti-Lock Brakes
  • I-Beam Front Axle with 55° Wheel Cut
  • Air-Ride™ Suspension
  • Exhaust Brake
  • Sachs® Shock Absorbers
  • Under-Hood Light
  • Dual Fuel Fills
  • 10,000-lb. Trailer Hitch with 7-pin Round Connector
  • Automatic Leveling Jacks with Touchpad Controls
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof and Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls, and Floors with Block Foam Insulation
  • One-Piece Fiberglass Front and Rear Caps
  • One-Piece Windshield
  • Domed TPO Roof
  • Full-Body Paint Package with Gel-Coat Sidewalls
  • Invisible Front Paint Protection
  • Basement Pass-Through Storage Compartment
  • Easy Slide Storage Tray (Model Specific)
  • Side-Hinged, Flush Mount Radius Compartment Doors
  • Lighted Storage Compartments
  • Power Patio Lateral Arm Awning with Integrated LED Lighting
  • Slide-out Room Topper Awnings
  • Roof Ladder
  • Patio Light
  • Electric Entry Step
  • Entry Door with Deadbolt Lock
  • Acrylic Exterior Grab Handle
  • Frameless Dual Pane Windows
  • Thor Insignia puddle light mounted in patio side of front cap

Automotive and Cockpit

  • 10.1 in. Touchscreen Dash Radio with Bluetooth®, Navigation and Sirius/XM® Prep
  • Chrome Heated/Power Mirrors with Integrated Side View Cameras
  •  Blind Spot Detection
  • Cruise Control
  • Tilt/Telescoping Steering Column
  • Dash Workstation with 110-volt and 12-volt Outlets
  • Dash Fans
  • Power Roller Shade on Windshield
  • Manual Roller Shades on Side Windows
  • Power Drop-Down Hide-Away Overhead Bunk with Cotton Cloud™ Mattress and Bunk Ladder
  • Emergency Engine Start Switch
  • Three-Point Seat Belts for Driver and Passenger
  • Leatherette Reclining/Swivel Captain’s Chairs
  • Power Adjustable Driver’s Seat
  • 255/70R 22.5 in. Radial Tires with Aluminum Wheels (33.5, 33.6)
  • 275/80R 22.5 in. Radial Tires with Aluminum Wheels (37.4, 37.5, 37.6)
  • Fog Lights
  • Bird's Eye™ Window

Interior

  • Luxury Vinyl Tile Flooring
  • Rubber Tread Entry Steps
  • Studio Collection™ Cabinetry with Rake Style Doors and Matte Finish
  • "Lifestyle Edition" 2-Tone cabinetry with Bristol Style Door (Optional)
  • Full Extension Metal Ball-Bearing Soft Closing Drawer Guides
  • Window Solar and Privacy Shades in Living Area
  • LED Lighting
  • Ceiling Ducted Whisper Air Central Cooling System
  • Soft Touch Vinyl Ceiling
  • Leatherette Sofa Bed - Passenger Side (Model Specific)
  • Leatherette Sofa Bed - Driver Side (Model Specific)
  • Leatherette Reclining Theater Seating with Footrests
  • Dream Dinette® Booth with (4) seat belts
  • Dual Child Safety Tether in Dinette
  • Electric Fireplace with Remote Control (Model Specific)
  • Smoke, LPG, and Carbon Monoxide Detectors
  • Monitor Panel with LPG Readout
  • Fire Extinguisher

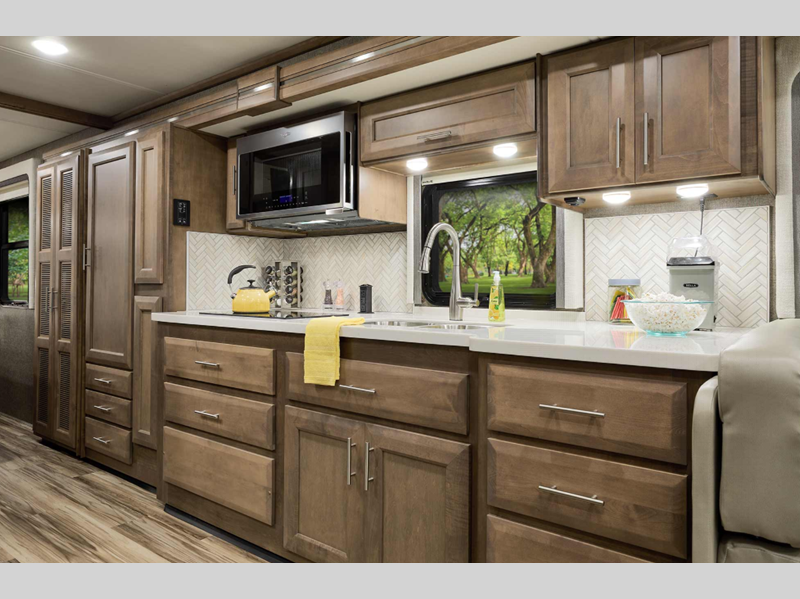

Kitchen

  • 15.7 Cu. Ft. Residential Refrigerator - French Door
  • Electric Induction Cooktop
  • 30 in. Over-the-Range Convection Microwave Oven
  • Solid Surface Countertops
  • Large, Double Bowl Stainless Steel Sink and Single Handle Faucet with Pull-Down Sprayer
  • Power Dome Attic Fan with Cover

Bedroom and Bathroom

  • Queen Size Bed w/Tilt-A-View® Inclining Mechanism (33.5, 33.6, 37.5, 37.6)
  • King Size Bed w/Tilt-A-View® Inclining Mechanism (37.4)
  • Bunk Beds – Converts to Wardrobe (33.5)
  • USB Charging Ports in Nightstands
  • Attractive Headboard, Bedspread & Throw Pillows
  • Sconce Wall Lighting (Model Specific)
  • Porcelain Toilet
  • Oversized Fiberglass Shower with Glass Door
  • Shower Miser Hot Water Recycling System
  • Oxygenics® Shower Head
  • Power Dome Attic Fan with Cover

Entertainment

  • 50” LED SMART TV in Living Area (Model Specific)
  • 39” LED SMART TV in Living Area (Model Specific)
  • 32” LED TV in Bedroom
  • Tablet Holder and USB Charge Port In Bunk Beds (Model Specific)
  • Soundbar
  • Exterior 40” LED TV on Swivel Bracket with Soundbar with Bluetooth®
  • Cable TV & HDMI Video Distribution Ready
  • Winegard® ConnecT™ 2.0 WiFi/4G/TV Antenna
  • Satellite Mounting Backer in Roof

Electrical and Plumbing

  • RapidCamp+® Multiplex Wiring Control System with 7” Screen, WiFi App-Enabled
  • Dual AirXcel® Mach 15™ 15,000 BTU Standard Profile Ducted Air Conditioners with (1) Heat Pump in LR
  • 50-amp Shoreline Power Cord
  • Automatic Transfer Switch w/Power Protection
  • Onan® RV QD 6000 Diesel Generator
  • Four (4) Auxiliary House Batteries
  • 2000-watt Inverter/100-amp Converter
  • 100-watt Solar Charging System with Control through Main Multiplex Control Panel
  • Exterior LP Connection
  • Battery Disconnect Switch
  • Automatic Generator Start
  • Tankless Water Heater
  • Stacking Washer/Dryer
  • Black Tank Flush System
  • 360 Siphon® RV Holding Tank Vent Cap
  • Systems Control Center
  • Outside Shower

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions.  See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Thor Motor Coach

Welcome to Thor Motor Coach, the #1 Motorhome Brand in North America, producing nearly 1 out of every 4 motorhomes sold each year. Formed in 2010 as a strategic merger of Damon Motor Coach and Four Winds International, we build many of the world’s most recognized motorhomes. As an industry leader in introducing cutting-­edge innovations, we offer a wide range of styles, sizes, floor plans and features – delivering coaches that fit every customer’s lifestyle and budget.



Our diverse product lineup includes gas and diesel powered Class A and Class C motorhomes, as well as several innovative Class B options as well.  By building a variety of unique styles, sizes, and floorplands, we offer motorhomes that feel custom-made – at a truly competitive price.



With so many unique models available, Thor Motor Coach motorhomes are priced to fit anyone’s budget – from families buying their first motorhome, to full-timers looking for a roaming “dream home.” No matter how you choose to spend your time or your money, there’s a Thor Motor Coach motorhome that fits your needs.

Value A Trade  Close

Provide us with some basic info and we’ll appraise your RV.

Tell us about the RV you currently own:

(Anything else we should consider?)

Tell us about the RV you're looking for:

Contact Information:



By submitting, you opt in to receive email and texting communication from Lazydays RV.


(Easily unsubscribe at any time.)
* Required field


Confirmation
Thank You, !

Your message was sent successfully

A representative has been notified and will be with you shortly.

Close
