Sleeps 5
-
3 Slides
-
Outdoor KitchenKitchen Island
-
35ft Long
-
10,550 lbs

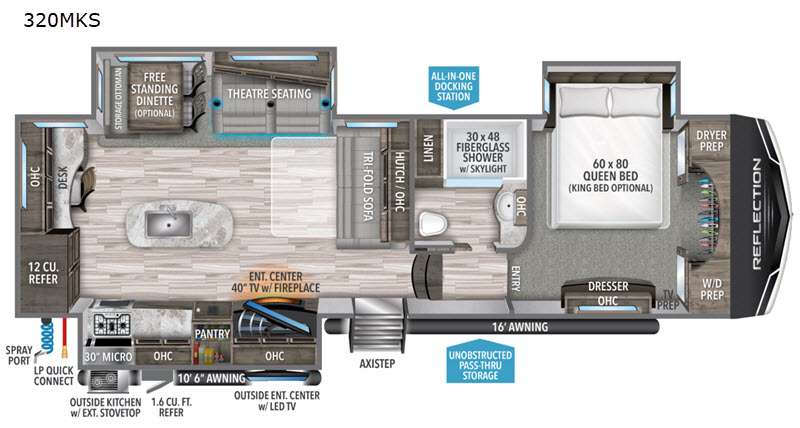

320MKS Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Length | 34 ft 9 in | Ext Height | 12 ft 6 in |
GVWR | 13995 lbs | Dry Weight | 10550 lbs |
Fresh Water Capacity | 80 gals | Grey Water Capacity | 94 gals |
Black Water Capacity | 43 gals | Furnace BTU | 40000 btu |
Available Beds | Queen | Refrigerator Size | 12 cu ft |
Cooktop Burners | 3 | Shower Size | 30" x 48" |
Number of Awnings | 2 | LP Tank Capacity | 30 lbs |
Water Heater Capacity | 6 gal | Water Heater Type | Quick Recovery |
AC BTU | 15000 btu | TV Info | LR 40" HD LED TV on Swing Arm, Ext. LED TV |
Awning Info | 16' & 10'6" Electric w/LED Lights | Axle Count | 2 |
Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
Shower Type | Standard | Electrical Service | 50 amp |
Description
Grand Design Reflection 320MKS fifth wheel highlights:
- Fireplace
- Queen Bed
- Kitchen Island
- Premium Congoleum Flooring
- Outside Kitchen
- Outside Shower
You won't believe all that this fifth wheel has to offer! From the rear desk with overhead cabinets for you to get some work done while you're away to the front private bedroom with a queen bed, which can be switched for the optional king bed, and a full wall wardrobe that is prepped to add the optional washer and dryer. The kitchen island will make your meal prepping easier and if you choose to add the optional free standing dinette then it will come with ottoman storage to keep your games. The living area is a comfortable place to wind down your nights with the tri-fold sofa that has a hutch behind it and the theater seating directly across from the entertainment center with the 40" HDTV and fireplace below. The exterior is decked out in features you will love like the outside kitchen with a two burner cooktop, two power awnings, an outside entertainment center with a LED TV, a spray port, an all-in-one docking station, and an unobstructed pass-through storage area!
Luxury, value, and towability is what you will find in every one of these Reflection fifth wheels and travel trailers by Grand Design! The mandatory Arctic 4-Seasons Protection package allows you to camp all year round with the 35k BTU high capacity furnace, the Thermofoil insulation, and the heated and enclosed underbelly with circulating heat. Their gourmet kitchens have everything you will need to create home cooked meals including a deep, seated stainless steel sink with a high rise faucet with a pull down sprayer to make clean up easier too. The ductless flooring means there are no floor vent covers to collect dirt or debris, and the universal docking station is an all in one heated location with an EZ winterization system. Easily open the pivoting AXISTEP which will help eliminate debris and moisture from falling inside the unit and also goes all the way down to the ground to make it more stable when entering. Start your next camping trip in true luxury!
Features
Standard Features (2022)
***PLEASE NOTE: Features and Options separated by type below:
---------------------------------------------------
TRAVEL TRAILERS
Exterior
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- 30# LP Bottles (2) with cover
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 2" Fresh Water Drain Valve
- Integrated Front Cap LED Lights
- Aerodynamic Front Cap w/ Max Turn Radius and Integrated LED Lights
Interior
- Residential Panel Cabinet Doors
- Solid Hardwood Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Slide Room Windows
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Roller Shade Window Covering
Kitchen
- Residential Gunstock Cabinet Hardware
- Deep, Undermount Kitchen Sink
- Hardwood Galley Slide Trim Moldings and End Caps
- Stainless Steel Refrigerator Fronts
Bathroom
- Spacious Shower with Glass Door
- Wide View Skylight Over Shower
- Power Vent Fan
- Extra Large Lav Top with Stainless Steel Sink
- Large Medicine Cabinet with Mirror
- Heat Duct and A/C Vents in Bathroom
Bedroom
- King Size Wardrobe
- 60 x 80 Mattress with Residential Bedspread
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- Cable/SAT Prep
Construction
- Gel Coat Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane
- Easy Access Low Point Drain Valves
- Laminated Aluminum Framed Side Walls (R-9)
- Marine Grade LED Hitch Light
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
- Laminated Aluminum Framed Rear Wall (R-9)
Options
- Free Standing Table w/Storage Ottoman
- Dual Pane Windows
- 2nd A/C 15k BTU Ducted
- 16 cu. Refrigerator IPO 10 cu. Refer (Forced 312BHTS and 315RLTS) (Mandatory)
- 60" Tri-Fold Sofa IPO Theatre Seating (312BHTS Only)
- King Bed (315RLTS Only)
- 2nd Awning (315RLTS only - Forced)
- Goodyear Endurance Tires (Forced) (Mandatory)
Packages
Ultimate Power Package (Mandatory)
- 30" Stainless Steel Microwave
- 15K BTU Ducted A/C
- "One-Touch" Electric LED Awning
- Maxx Air Fan
- AM/FM/CD/DVD HDMI Bluetooth Stereo
- 50 AMP Service, Wired and Framed for 2nd A/C
- High Definition LED Television
- Detachable Power Cord with LED Light
- Power Front and Rear Stabilizer Jacks
- LED Interior Lighting
- Motion Sensor Pass Through Lighting (LED)
- Motion Sensor Entry Lighting (LED)
- Compass Connect
- Tire Linc TPMS
Peace of Mind Package (Mandatory)
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Water Heater
- Porcelain Toilet with Foot Pedal Flush
- High-Rise Faucet with Pullout Sprayer
- Aluminum Entry Steps
- Wall Hugger Theatre Seats
- Painted Fiberglass Front Cap
- Residential Booth Dinette
- LP Quick Connect
- Self-Adjusting Brakes
- Roller Shades
- 6' Coiled Break Away Cable
- Deep Seated Stainless Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- Nitrogen Filled Radial Tires
- 2" Receiver Hitch
- Solid Surface Countertops
- Solid Surface Sink Covers
Arctic 4-Seasons Protection Package (Mandatory)
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Heated and Enclosed Dump Valves
- Heated and Enclosed Underbelly w/Circulating Heat
- Thermofoil Insulation under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Dual Attic Vents
- 12V Heat Pads on Holding Tanks
Solar Package (Mandatory)
- 165W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 50 Amp Charge Controller
- 12V 10 Cube Refrigerator
- Inverter Prep
--------------------------------------------------
FIFTH WHEELS
Exterior
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light
- LED "Night Lights" Under Bedroom Slide
- Rubberized Suspension Equalizer
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- Extended Pin Box
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 2" Fresh Water Drain Valve
- Aluminum Rims
- Spare Tire and Carrier
Interior
- Residential Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Large Panoramic Slide Room Windows'
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
- Roller Shade Window Covering
Kitchen
- Deep, Undermount Kitchen Sink
- Hardwood Galley Slide Trim Moldings and End Caps
- Raised Hardwood Panel Refrigerator Fronts
- Deep Seated Stainless Steel Sink
Bathroom
- Spacious Shower with Glass Door
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Power Vent Fan
- Extra Large Lav Top with Stainless Steel Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- 60 x 80 Mattress with Residential Bedspread
- Oversize Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- Cable/SAT Prep
Construction
- High Gloss Gel Coat Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 18-Year Warranty
- Easy Access Low Point Drain Valves
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
Options
- Free Standing Table w/ Storage Ottoman (NA 28BH and 31MB)
- 16 cu. Refrigerator (Forced) (NA 31MB) (Mandatory)
- Dual Pane Windows
- 78" Theatre Seating IPO Booth Dinette (28BH only)
- 2nd A/C 13.5k BTU Ducted
- King Bed (310RDS, 320MKS, 340RDS, 337RLS, 367BHS)
- 2nd Awning (Forced - 303RLS, 311BHS, 320MKS, 337RLS, 340RDS, 367BHS) (Mandatory)
- 60" Trifold IPO Theatre Seating (N/A 310RLS, 340RDS)
Packages
Ultimate Power Package (Mandatory)
- 30" Stainless Steel Microwave
- 15K Ducted Main A/C
- "One-Touch" Electric LED Awning
- Maxx Air Fan
- AM/FM/CD/DVD HDMI Bluetooth Stereo
- 50 AMP Service, Wired and Framed for 2nd A/C
- High Definition LED TV
- Detachable Power Cord with LED Light
- "One-Touch" Automatic Leveling System
- LED Interior Lighting
- Motion Sensor Pass Through Lighting (LED)
- Motion Sensor Entry Lighting (LED)
- Compass Connect
- Tire Linc TPMS
Peace of Mind Package (Mandatory)
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Water Heater
- Porcelain Toilet with Foot Flush
- High-Rise Faucet with Pullout Sprayer
- Aluminum Entry Steps
- Wall Hugger Theatre Seats
- Painted Fiberglass Front Cap
- Residential Booth Dinette
- LP Quick Connect
- Self Adjusting Brakes
- Roller Shades
- 6' Coiled Break Away Cable
- Deep Seated Stainless Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- Nitrogen Filled Radial Tires
- 2” Receiver Hitch Upgrade
- Solid Surface Countertops
- Solid Surface Sink Covers
Arctic 4-Seasons Protection Package (Mandatory)
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Heated and Enclosed Dump Valves
- Heated and Enclosed Underbelly w/Circulating Heat
- Thermofoil Insulation under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Dual Attic Vents
- 12v Heat Pads on Holding Tanks
- Heated Pass Thru Storage Area
Solar Package (Mandatory)
- 165W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 50 Amp Charge Controller
- 12V 10 Cube Refrigerator
- Inverter Prep
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
