Sleeps 5
-
4 Slides
-
Outdoor Entertainment
-
35ft Long

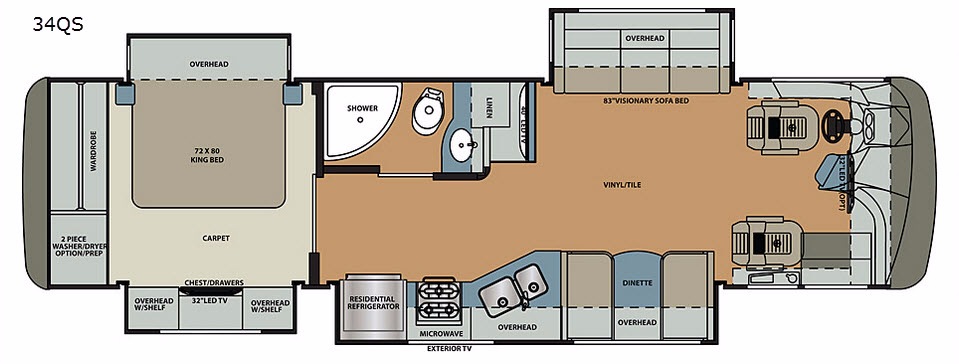

34QS Floorplan
Specifications
Sleeps | 5 | Slides | 4 |
Length | 35 ft | Ext Width | 8 ft 4 in |
Ext Height | 12 ft 5 in | Int Height | 7 ft |
Hitch Weight | 5000 lbs | GVWR | 0.00 lbs |
Fresh Water Capacity | 86 gals | Grey Water Capacity | 66 gals |
Black Water Capacity | 42 gals | Tire Size | 22.5" |
Furnace BTU | 35000 btu | Fuel Type | DIESEL |
Miles | 6147 | Engine | 340HP Cummins |
Chassis | Freightliner | Horsepower | 340 hp |
Fuel Capacity | 100 gals | Wheelbase | 206 in |
Available Beds | King | Torque | 700 ft-lb |
Refrigerator Type | 2 Door Residential | Convection Cooking | Yes |
Cooktop Burners | 3 | Number of Awnings | 1 |
Axle Weight Front | 10410 lbs | Axle Weight Rear | 17500 lbs |
AC BTU | 30000 btu | TV Info | LR 40" LED TV, BR 32" LED TV, Opt. Cab 32" LED TV, Exterior 32" LED TV |
Awning Info | 14'7" | Washer/Dryer Available | Yes |
Gross Combined Weight | 32910 lbs | Shower Type | Radius |
Electrical Service | 50 amp |
Description
This Berkshire 34QS motor home by Forest River features quad slide outs and a comfortable amount of living space.
As you enter the motor home, on the left side there is a slide out with a booth dinette, double kitchen sink, three burner range, microwave, overhead cabinet, and residential refrigerator. Across from the booth dinette you will find a slide out with a sofa, overhead cabinet, and adjacent to the slide there is a 40" LED TV.
The bathroom has a corner shower, toilet, sink, medicine cabinet, and linen cabinet which is great for storing towels or toiletries.
The rear bedroom has a king bed and overhead cabinet which is located within the slide out. Across from the bed you will find another slide out with a chest of drawers, 32" LED TV, and overhead cabinets with shelves. Along the rear wall there is a wardrobe which provides great storage. In the corner of the room you will also find an area that has been prepped for a two piece washer and dryer, and much more!
Features
Standard Features (2017)
Automotive & Cockpit
- Freightliner XCR Raised Rail Chassis
- Cummins ISB turbo diesel 6.7 liter 340 HP at 2800 RPM, 700 ft. lbs. torque at 1600 RPM
- Allison MH-2500 6-Speed Automatic Transmission
- 120v Engine Heater 750W
- 22.5" Polished Aluminum Wheels
- Michelin XRV 255/80 R22.5 14 ply radial tires
- Trailer hitch capacity, 5,000 Lbs.
- Allison electronic push button shifter
- 100 gallon, locking dual fill fuel tank
- Driver side mounted 13 Gallon DEF Tank (N/A 34QS)
- LCD engine message center
- Day time running lights
- 7-Pin tow power connector
- 18.7 CFM air compressor
- Farr Eco-air cleaner
- Air filter restriction indicator
- Fuel/water separator
- Brake line air dryer w/heater
- Automatic, heated moisture ejectors
- Power steering
- Washer/heavy-duty wiper with intermittent function
- 160 amp alternator
- Two (2) 1900 CCA at 0 degree Fahrenheit, maintenance free batteries
- Full air ABS brakes with auto slack adjuster, front disc brakes
- Variable exhaust brake
- Telescopic/tilt steering wheel
- Suspension Neway front and V-Ride rear
- Sachs custom tuned shock absorbers
- 55 degree wheel cut
- Auto air suspension deflation system
- Cross flow, rear mounted radiator
- Transmission oil cooler
- 5 year / 100,000 mile coolant (some maintenance required)
- 4-Spoke VIP black steering wheel
- Electronic cruise control w/ high idle
- Multiple auxiliary charging ports at dash
- Power stepwell cover
- Entry assist handle
Construction & Exterior
- One-piece fiberglass front and rear caps
- Sikkens® full body painted exterior (4X clear coat)
- Four (4) point fully auto hydraulic leveling system w/ auto air dump
- Steel basement structure
- Tru-Brace chassis support system
- Rust resistant aluminized steel chassis skirts
- Diamond shield front mask protective film
- One-piece fiberglass roof
- Top-mount remote exterior/heated/mirrors/with cameras
- Frameless dual pane, dark tint windows
- Automotive foam and Ziebart seal undercoating
- Carefree power door awning
- Carefree Latitude dual pitch patio awning with LED lighting and wind sensor
- Carefree slide out topper with covers
- Full height strut assisted compartment doors with full pass through storage
- "One Key" system, exterior compartment, entry door & fuel fill doors
- Ducted A/C System
- Crowned and layered vacuum bonded fiberglass roof
- Vacuum bonded 3" floor w/tubular aluminum frame
- Gel coated vacuum bonded aluminum tube w/ fiberglass & block foam insulation sidewalls
- One-piece 1/2" Structure wood flooring
- Block foam polystyrene insulation
- 30" Entryway
- In-wall channeled drains for A/Cs
- Tubular steel firewall w/polystyrene insulation
- Lighted exterior assist handle
- Two-piece rear ladder
- 84" interior ceiling height
- PTL Entrance door with deadbolt
- Auxiliary air chuck (front firewall)
- Auxiliary LP supply, quick connect (passenger side)
- LED marker lights
- Full length mud flap w/ chrome Forest River name
Electrical
- 50A service with auto transfer switch & 30' power cord
- 6kW Onan diesel generator with manual slide tray
- Electronic battery disconnect switch
- Remote generator start switch (on dash and in bedroom)
- LED ceiling light package
- Driver and Passenger LED ceiling map lights
- Cosmetic bathroom lighting
- Decorative wall and dinette lighting where applicable
- Auxiliary engine start switch at dash
- Individual reading lights bed overhead
- 2000w modified Sine wave inverter/converter
- Auto generator start control
- Four (4) Six volt deep cycle house batteries
- Two (2) Master electric shut off switches
- LED porch and patio lights
- Easy read 12v circuit house load center
- Solar panel controller with roof prep
- Automotive chassis fuse panel
- Multi-Plex Lighting with smart APP Controls
- Dimmer control lighting throughout
Plumbing
- Variable speed constant pressure water pump
- Bath - Solid surface under mount sink
- Kitchen - Stainless steel under mount sink
- Whole house water filter
- Black water tank flush system
- Kitchen-Single lever faucet with pull-out sprayer
- Double lever lavatory faucets
- One piece fiberglass shower with tempered glass door and skylight
- Porcelain china bowl toilet with foot flush
- Tecma macerator toilet (rear bath) (N/A 34QS)
- Clean easy exterior shower hose
- Monitor panel in water bay compartment
- 360 Siphon roof vent caps
- Individual zoned hot/cold manifold water supply system
- 4-way water management valve in water bay compartment
Driver/Passenger Area
- One piece windshield
- Power front day/night shades
- Manual passenger and driver window night shade
- Metallic cherry wood grain dash panels
- Fog lights
- 10" Dash radio with integrated color back-up and side view camera package with navigation
- Wrap around cockpit with six (6) gauge instrument cluster
- Driver 360 degree swivel and recline seat with 6-way power adjustment
- Passenger 360 degree swivel and recline
- Leatherette Driver/Passenger seat
- Lighted tiled step well
- Two (2) Defroster fans with high and low settings
- Driver/passenger cup holders
- Automotive dash AC/Heater with deluxe controls
- Multiple USB charging ports
- Passenger side console w/ cupholder
Entertainment
- 48" LED TV, living room (N/A 34QS)
- 40" LED TV, living room (N/A 38A)
- 32" LED TV, bedroom
- 32" LED TV, exterior
- 20" LED TV, (2) each bunk with easy access HDMI jack (N/A 34QS)
- Sound Bar with radio, integrated sub and Bluetooth
- Roof mount Winegard Trav’ler satellite prep
- Cable TV prep
- High Definition digital TV antenna with signal strength indicator
- High Definition Cat 6 matrix signal distribution
- Sirius/XM satellite radio capable
- Blu-ray DVD Player
Interior
- 12" x 24" Vinyl tile flooring
- Hardwood cabinetry and slideout fascia
- Raised panel hardwood cabinet doors
- Hidden hinges and bar pull style cabinet hardware
- Carpeted living room and dining slide-outs
- Window valances
- Bedroom Carpet with padding
- Visionary Hide-A-Bed sofa
- Polished solid surface kitchen/dinette countertops with flush sink and stove covers
- Décor laminate on all other countertops
- Soft close ball bearing drawer guides in kitchen
- Full extension ball bearing metal drawer guides
- Galley storage compartment for range and sink covers
- Pull out kitchen countertop (N/A 34QS)
- Bi-fold doors w/ bunk beds (N/A 34QS)
- "Soft Touch" Dream booth dinette with storage underneath
- "Soft Touch" padded ceiling
- Roller style day/night shades
- Dresser drawers and wardrobe type cabinets
- 72" x 80" king pillow top with bedspread and decorative pillows (N/A 38A)
- 60" x 80" queen pillow top with bedspread and decorative pillows (N/A 34QS)
- Hardwood headboard with padded insert
- Bedroom, overhead cabinets
- Bed night stands (front stand with dual USB jack)
- Mirrored medicine cabinets
- Towel bar, toilet paper holder and towel ring
Appliances
- 15,000 BTU (front) with heat pump, 15,000 BTU (rear) A/Cs
- Holding tank heat pads
- Truma Continuous flow tankless gas hot water heater
- 35,000 BTU furnace (N/A 38A)
- 42,000 BTU furnace (N/A 34QS)
- 30" OTR convection microwave oven
- 2 Door residential refrigerator
- Sealed 3-burner stainless recessed cook top
- Power fan in bathroom
- MaxxAir in galley w/ wireless remote control w/cover
- Washer/dryer prep
Safety
- 110 GFI protected circuits
- Carbon monoxide detector
- LP gas detector with auto tank shutoff
- Smoke alarm
- Egress window
- Surface mounted fire extinguisher
Options
Interior
- Theater seating w/twin sleepers in place of standard Visionary Sofa (N/A 38A)
- Vinyl wood plank flooring in place of 12" x 24" vinyl tile flooring
- Fitted cockpit floormat with Berkshire logo
Exterior
- Slide tray in basement compartment
Driver/Passenger Area
- 32" LED TV, front overhead
Appliance/Electronic
- Trav’ler (Winegard) satellite antenna Direct TV (US)-Shaw (Canada)
- Electric fireplace
- Stackable washer/dryer
See us for a complete list of features and available options.
All features and specifications are subject to change.
