Sleeps 4
-
4 Slides
-
U Shaped DinetteBath and a Half
-
40ft Long
-
Earthtones

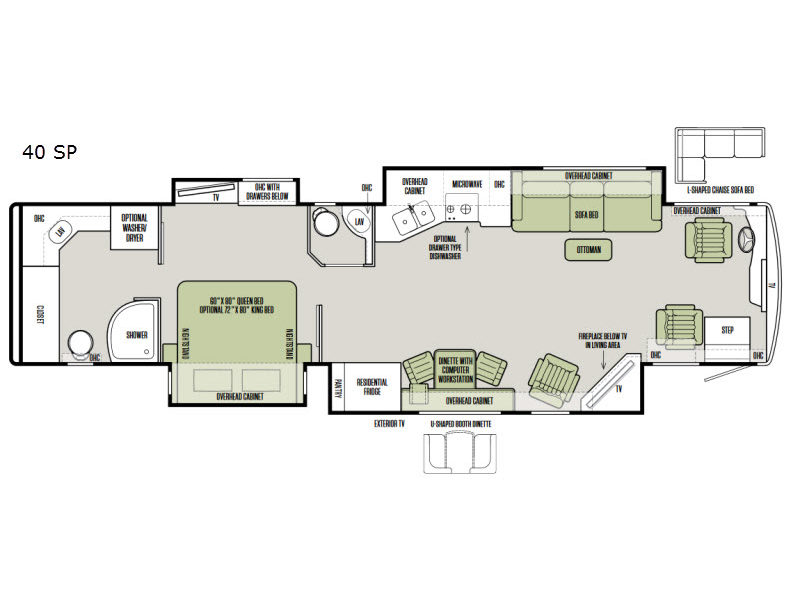

40 SP Floorplan
Specifications
Sleeps | 4 | Slides | 4 |
Length | 40 ft | Ext Width | 8 ft 5 in |
Ext Height | 12 ft 7 in | Int Height | 7 ft |
Interior Color | Earthtones | Exterior Color | Beige |
GVWR | 0.00 lbs | Fresh Water Capacity | 90 gals |
Grey Water Capacity | 70 gals | Black Water Capacity | 50 gals |
Tire Size | 315/80R22.5 | Generator | Onan 10.0 KW |
Fuel Type | DIESEL | Miles | 35000 |
Engine | 450HP Cummins | Chassis | Powerglide |
Fuel Capacity | 150 gals | Wheelbase | 276 in |
Available Beds | Queen | Torque | 1250 ft-lb |
Refrigerator Type | Stainless Steel Residential | Convection Cooking | Yes |
Cooktop Burners | 2 | Axle Weight Front | 16000 lbs |
Axle Weight Rear | 24000 lbs | Basement Storage | 177 cu. ft. |
TV Info | Living Area, Above Cab, Bedroom, Exterior | Washer/Dryer Available | Yes |
Gross Combined Weight | 55000 lbs | Shower Type | Radius |
Electrical Service | 50 amp |
Description
Road trips just got more exciting with this Tiffin Allegro Bus class A model 40 SP. This diesel coach features quad slides, one and a half baths, and loads of comforts to make you feel right at home as you head to your favorite destinations, or explore some new ones.
As you enter notice how open it is just beyond the driver and passenger seats with two opposing slide outs. The right hand slide looking back features a sofa bed, ottoman, and overhead cabinets/counter space, plus a two burner range, microwave oven, and double kitchen sink. There are plenty of overhead storage cabinets, plus an optional drawer type dishwasher.
On the left just beyond the passenger seat find a corner entertainment center with TV and fireplace below for your enjoyment. There is also a lounge chair, a dinette with computer workstation, residential refrigerator, and pantry, plus overhead storage.
A convenient half bath featuring a toilet, sink, and overhead storage is centrally located.
Next, find the bedroom which also features dual opposing slide outs with a queen bed including nightstands, and overhead storage along the left side of the room, plus a slide out TV and dresser on the right side.
Move toward the rear and find a private bath with sliding door including a corner shower, toilet, vanity with sink, large end wall closet, an optional washer and dryer, plus so much more.
You can also add a few options, such as, a king size bed, u-shaped booth dinette, and L-shaped chaise sofa bed.
Features
Mechanical
- Allison 3000 MH 6-speed Automatic Transmission with Lock-up (Torque Converter)
- Side Mounted Radiator
- ABS Brakes & Two-Stage Compression Engine Brake
- Aluminum Wheels
- Air Bags: 4 on 37’ & 40’; 6 on 45'
- Cruise Control
- VIP Smart Wheel
- Fog Lights
- Emergency Start Switch
- Adjustable Fuel & Brake Pedals
- Independent Front Suspension
- Trailer Hitch Capacity: 15,000 lb
- Fuel Tank (Gallons) – Dual Fuel Fill: 150
Cockpit
- Front Overhead TV
- 12 V Disconnect Switch
- Driver Side Power Window
- Integrated Seatbelts
- Power Ultra Leather Driver & Passenger Seats with Passenger Power Footrest
- Satellite Radio (Subscription Required)
- Passenger Seat Console Box with Built-in Magazine Rack
- In-dash Navigation System
- Color Rear Vision Monitor System with Side-view Cameras Activated by Turn Signals
- Contemporary Wraparound Dash
- Power Solar/Privacy Windshield Cockpit Shades
- CD Player & AM/FM Stereo
- Computer Drawer on Passenger Side
- Cupholders on Driver & Passenger Side
- Drawer in Step Well
- Lighted Switches
- Dual Dash Fans
- Fire Extinguisher
- Beverage Tray
- USB Dash Receptacles
- USB Passenger Side Receptacles
- Power Step Well Cover
Driver Compartment/Cockpit Options
- Mobileye® Camera/Sensor System (NA for 45 OP & 45 OPP with the Freightliner Chassis)
General Exterior
- Fiberglass Front & Rear Caps
- Dual Fuel Fills
- Full-body Paint with Protective Film on Front Cap
- Large Tinted One-piece Windshield
- Heated Chrome Power Mirrors with Remote Adjustments
- Single Motor Intermittent Wipers
- Undercoating
- Deadbolt Front Entrance Door
- Keyless Entry Door System & Keyless Component Door Locks
- Exterior TV
- Dual Pane Tinted Windows
- Automatic Door & Patio Awning
- Paramount Awning
- Pass-thru Basement Storage
- Lockable Swing-out Exterior StorageDoors with Gas Shocks
- Heated Water & Holding Tank Compartments
- Auto Generator Start
- SeeLeveL Monitor Pad Located at Dump Station
- SeeLeveL Tank Monitor
- Six House Batteries
- Custom Mud Flap
- 50 Amp Service
- Power Cord Reel–50 Amp
- Black Holding Tank Flush System
- 110 V Exterior Receptacle
- Water Filter
- Gravity Water Fill
- Docking Lights
- Exterior Rinse Hose with Soap Dispenser & Paper Towel Holder
- Onan®10.0 kw Generator with Three Low Profile Roof ACs with Heat Pumps
- Concealed Air Horn
- Digital TV Antenna
- Combination Valid Air Leveling System with HWH Hydraulic Leveling Jacks
- Luggage Compartment Lights
- Pure Sine Wave Inverter
- Pre-wired for Winegard Trav'ler Satellite
- Low Profile In-motion Satellite Dish*
General Exterior Options
- One Storage Compartment Slide-out Tray
- One Power Storage Compartment Slide-out Tray
- Two Storage Compartment Slide-out Trays (N/A 37 AP)
- Two Power Storage Compartment Slide-out Trays (N/A 37 AP)
- Second Paramount Awning (N/A 37 AP, 40 AP, 40 SP)
- 145 Watt Solar Panel
- Basement Freezer/Refrigerator
- Roof Ladder
General Interior
- 7' Ceilings with LED Lighting
- Soft Touch Vinyl Ceilings
- High Gloss Raised Panel Hardwood Cabinet Doors
- Washer/Dryer Ready
- SeeLeveL Tank Monitor
- Carbon Monoxide & Smoke Detectors
- Central Vacuum Cleaner with VacPan
- Porcelain Tile Flooring Throughout Coach (Excluding Slide-outs)
- Complete Cable Wiring Interfacing with Surround Sound & Satellite Receiver
- Surround Sound Speakers in Ceiling
- Energy Management System
- In-motion Low Profile Satellite Dish with Direct TV® Receiver (Subscription Required)
- Extraordinaire™ AC System
- Multiplex Lighting System
- Hydronic Heating System
General Interior Options
- Cherry Wood Solid Cabinet Doors & Drawer Fronts
- Glazed Canyon Cherry Solid Cabinet Doors & Drawer Fronts
- Glazed Cherry Solid Cabinet Doors & Drawer Fronts
- Glazed Honey Natural Cherry Solid Cabinet
- Doors & Drawer Fronts
- Natural Cherry Solid Cabinet Doors & Drawer Fronts
- White Chocolate Solid Cabinet Doors & Drawer Fronts
- in Bath Area Only
- Stacked Washer/Dryer
- Dual Zone Heated Tile Floor
Living Area/Dinette
- Full Porcelain Tile Floor in Living Room & Bath (Excluding Slide-Outs)
- Dinette with Computer Workstation
- Ultra Leather Air Coil Hide-a-Bed on Driver Side
Living Area/Dinette Options
- Ultra Leather U-shaped Booth Dinette (Non-sleeper) on Passenger Side
- Ultra Leather L-Shaped Sofa on Driver Side
- Ultra Leather Recliner on Passenger Side (40 SP only)
- Ultra Leather Recliner on Driver Side (37 AP & 40 AP only)
- Entertainment Center with One Ultra Leather Recliner on Passenger Side (40 SP only)
Available Options for 37 AP, 40 AP, & 40 SP
- Ultra Leather U-shaped Booth Dinette (Non-sleeper) on Passenger Side
- Ultra Leather L-Shaped Sofa on Driver Side
- Ultra Leather Recliner on Passenger Side (40 SP only)
- Ultra Leather Recliner on Driver Side (37 AP & 40 AP only)
- Entertainment Center with One Ultra Leather Recliner on Passenger Side (40 SP only)
Available Package Options for 45 OP
- Package A (STANDARD): Ultra Leather DE Sofa with TV Cabinet (PS), Ultra Leather Air Coil Hide a Bed Sofa (DS)
- Package B: Ultra Leather DE Sofa with TV Cabinet (PS), Ultra Leather L-Shaped Sofa (DS)
- Package C: Entertainment Center with Recliner & Fireplace (PS), Ultra Leather Air Coil Hide a Bed Sofa (DS)
- Package D: Entertainment Center with Recliner & Fireplace (PS), Ultra Leather L-Shaped Sofa (DS)
- Package E: Ultra Leather DE Sofa with Lift TV (PS), Ultra Leather Air Coil Hide a Bed Sofa (DS)
- Package G: Ultra Leather DE Sofa with Lift TV (PS), Theatre Seating (DS)
- Package H: Ultra Leather DE Sofa with Lift TV (PS), 2 Recliners with Fireplace (DS)
Available Package Options for 45 OPP
- Package A (Standard): Ultra Leather DE Sofa Bed with Lift TV (PS), Ultra Leather Air Coil Hide a Bed Sofa (DS)
- Package B: Ultra Leather DE Sofa Bed with Lift TV (PS), Ultra Leather L-Shaped Sofa (DS)
- Package C: Ultra Leather Air Coil HIde a Bed Sofa with Lift TV (PS), Theatre Seating (DS)
- Package D: Ultra Leather Air Coil Hide a Bed Sofa with Lift TV (PS), 2 Recliners with Fireplace (DS)
Kitchen
- Polished Solid Surface Countertops with Sink Covers
- Expand-an-island
- Solid Surface Double Bowl Sink
- 2 ½" Deep Lighted Toe Kick
- Single Lever Sink Faucet with Built-in Sprayer
- 2-burner Induction Cooktop with Hinged Solid Surface Cooktop Cover
- Stainless Steel Convection Microwave with Exterior Venting
- Stainless Steel Residential Refrigerator
- LED Light Above Countertop
- Solid Surface Cooktop Cover
- Galley Soap Dispenser
Kitchen Options
- Dishwasher (Drawer Type)
Bath
- Solid Surface Shower with Glass Door
- Solid Surface Vanity Top & Bowl
- Medicine Cabinet with Vanity Lights
- Electric Flush Toilet
- Skylight in Shower & LED Light
- Roof Vent Fan
Bath Options
- Tub in Place of Shower
Bedroom
- Memory Foam Queen Mattress (60" x 80")
- Bed Comforter with Throw Pillows
- Solid Surface Nightstand Tops
- Solar/Privacy Shades
- Laundry Hamper
- Blu-ray System & Satellite Receiver
- Wall Safe
- USB Receptacles
- Ceiling Fan
Bedroom Options
- King Bed Mattress (72" x 80")
- Dual Control Air Comfort Mattress – Queen (60" x 80") or King (72" x 80")
- Memory Foam King Mattress
- Power Smart Bed with Memory Foam - Queen or King
