Sleeps 8
-
2 Slides
-
Bunk Over CabBunkhouse
-
36ft Long

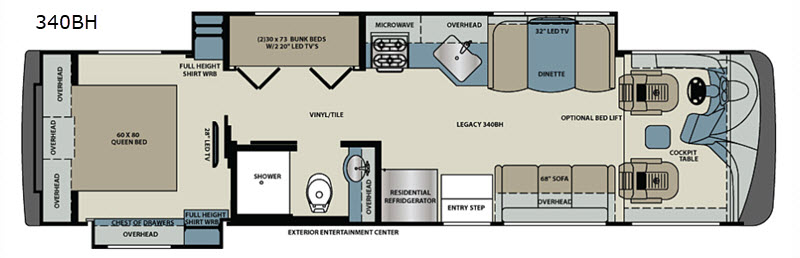

340BH Floorplan
Specifications
Sleeps | 8 | Slides | 2 |
Length | 36 ft 2 in | Ext Width | 8 ft 4 in |
Ext Height | 12 ft 4 in | Int Height | 6 ft 10 in |
Hitch Weight | 5000 lbs | GVWR | 29410 lbs |
Fresh Water Capacity | 86 gals | Grey Water Capacity | 44 gals |
Black Water Capacity | 44 gals | Tire Size | 255/80R22.5 |
Furnace BTU | 35000 btu | Fuel Type | Diesel |
Miles | 10305 | Engine | Cummins ISB Turbo |
Chassis | Freightliner XCS | Horsepower | 340 hp |
Fuel Capacity | 90 gals | Wheelbase | 208 in |
Number Of Bunks | 3 | Available Beds | Queen |
Torque | 700 ft-lb | Refrigerator Type | Residential |
Convection Cooking | Yes | Cooktop Burners | 30 |
Number of Awnings | 1 | Axle Weight Front | 10410 lbs |
Axle Weight Rear | 19000 lbs | AC BTU | 30000 btu |
TV Info | LR 32" LED TV, BR 28" LED TV, Bunk Area (2) 20" LED TV's, Exterior 32" LED TV | Awning Info | 18' Power w/LED Lights |
Gross Combined Weight | 33000 lbs | Shower Type | Standard |
Electrical Service | 50 amp |
Description
Forest River Legacy SR 340 class A diesel 340BH motorhome highlights:
- Rear Private Bedroom
- Bunk Beds
- Booth Dinette
- Exterior Entertainment Center
This Legacy 340BH class A diesel motor home by Forest River offers bunk beds that your kiddos are sure to love, and plenty of room with two slide outs. You can comfortably enjoy your meals at the booth dinette or transform it into an extra sleeping space at night, and if you have leftovers then you can store them in the spacious residential refrigerator to enjoy them for a second time! Grab your favorite beverage and a chair, and enjoy the great outdoors by relaxing underneath the 18' awning. When you're ready to hit the sack, you can head into the rear private bedroom and enjoy a good night's rest on the queen bed or if you can't fall asleep then turn on the 28" LED TV.
The Forest River Legacy SR 340 class A diesel delivers everything you could want in a motorhome. You've worked hard and with any of these motorhomes you will find the luxury that you've earned! These units are built with a Freightliner XCS straight rail chassis, a 6-speed 2500 Allison transmission, and rust resistant aluminized chassis skirts to give you a motorhome that will last a lifetime. You will enjoy the convenience of the driver side tank fill, MCD shades throughout, and the vinyl flooring inserts. You can enjoy the great outdoors underneath the carefree, armless latitude awning with wind sensors, and even watch your favorite movie on the exterior 32" LED TV, plus you can play your best music with the JBL soundbar with integrated sub and bluetooth. So, come pick out your favorite Forest River Legacy motorhome and get your relaxing vacation started already!
Features
Standard Features (2018)
Chassis
- Freightliner XCS Straight Rail Chassis
- Cummins ISB turbo diesel 6.7 liter 340 HP at 2800 RPM, 700 ft. lbs. torque at 1600 RPM
- Allison MH-2500 6-Speed AutoTransmission w/push button shifter
- 120v Engine Heater 750W
- 22.5" Polished Aluminum Wheels
- Michelin XRV 255/80R22.5 tires (G) (N/A 38C)
- Michelin XRV 255/70R22.5 tires (H) (38C Only)
- Hitch provided
- Allison electriconic push button shifter
- 90 gallon, locking dual fill fuel tank
- Driver side Fill, 13 Gallon DEF Tank
- LCD engine message center
- Day time running lights
- 7-Pin tow power connector
- 18.7 CFM air compressor
- Farr Eco-air cleaner
- Air filter restriction indicator
- Fuel/water separator
- Brake line Air Dryer w/Heater
- Automatic, heated moisture ejectors
- Power steering
- Washer/heavy duty-wiper w/ intermittent function
- 160 amp alternator
- Two (2) 1900 CCA maint. free chassis batteries
- Full air ABS brakes w/ auto slack adjuster
- Variable exhaust brake
- Telescopic/tilt steering wheel
- Suspension Neway front and V-Ride rear
- Sachs custom tuned shock absorbers
- 55 degree wheel cut
- Air suspension deflation system
- Cross flow, rear mounted radiator
- Transmission oil cooler
- 5 year / 100,000 mile coolant (some maintenance required)
- 4-Spoke VIP black steering wheel
- Electronic cruise control w/ high idle
Construction & Exterior
- Fiberglass front and rear caps
- Full body painted exterior (4x clear coat)
- Four (4) point fully auto hydraulic leveling system w/Manual dump
- Steel basement structure
- Rust resistant aluminized steel chassis skirts
- Diamond shield front mask protective film
- 1 Piece fiberglass roof
- Top-mount remote exterior/heated/mirrors/with cameras
- Frameless dual pane, dark tint windows
- Automotive foam and Ziebart seal undercoating
- Carefree Latitude dual pitch patio awning w/led lighting & Wind Sensor
- Carefree s/o topper w/covers
- Full height strut assisted compartment doors w/full pass through storage
- One Key system, ext-compartment, entry door & fuel fill doors
- Ducted A/C System
- Crowned and layered vacuum bonded fiberglass roof
- Vacuum bonded 3" floor w/tubular aluminum frame
- Gel coat vacuum bonded sidewalls, s/o floors & walls
- Block foam polystyrene insulation in walls, roof and floors
- 30" Entry/stepwell
- Channeled drains for A/Cs
- Tubular steel firewall w/polystyrene insulation
- Auxiliary air chuck (front driverside compartment)
- Auxiliary LP supply, quick connect (passenger side)
- Two piece rear ladder
- 82" interior ceiling height
- Mid-entry entrance door w/exterior and interior assist handle
- LED Marker Lights
Electrical
- 50A service w/auto transfer switch & 30' power cord
- 6kW Onan diesel generator w/manual slide tray
- Energy management system
- Electronic house power disconnect switch
- Generator start/stop switch (On dash/bedroom)
- Multi-Plex w/Precision Plex App Control
- Dimmer control lighting throughout
- LED ceiling lights package
- Individual dimmable bed overhead reading lights
- Decorative bath, dinette &wall lights w/applicable
- 2000w pure sine wave inverter/charger
- Auto generator start control
- Four (4) Six volt house batteries
- Chassis & House batteries master shut off switches
- Led porch & patio lights
- Easy read 12v circuit house load center
- Solar panel controller w/roof prep
- Automotive chassis fuse panel (front driverside compt)
Plumbing
- Variable speed 4GPM water pump
- Individual zoned hot/cold manifold water supply system
- 4-way water management valve in water bay compartment
- Bath - solid surface under mount sink
- Kitchen - stainless steel under mount sink
- One piece fiberglass shower w/tempered glass door & skylight
- Whole house water filter
- Black water tank flush system
- Kitchen single lever faucet w/ pull-out sprayer
- Porcelain china bowl toilet w/foot flush
- Tecma macerator toilet (rear bath) (38C Only)
- Clean-easy exterior shower hose
- Convenience monitor panel at water bay
- 360 Roof vent caps
Driver/Passenger Cockpit
- One piece windshield
- Power front day/night shades
- Passenger & driver window day/night shades
- Fog lights
- 6" Dash radio w/ color back-up and side view camera pkg w/Navigation
- Sirius/XM satellite roof mounted antennae
- Leatherette driver seat, swivel & recline w/6-way power adjustments
- Leatherette passenger seat, swivel & recline
- Driver/Passenger side console w/cupholders
- Cock-pit table between driver/passenger seats
- Two (2) Defroster fans w/ high and low settings
- Multiple USB charging ports
- Automotive dash AC/heater w/ deluxe controls
- Driver & Passenger LED ceiling map lights
- Emergency/aux engine start switch at dash
Entertainment
- 40" LED TV, living room
- 32" LED TV, bedroom (38C Only)
- 28" LED TV, bedroom (N/A 38C)
- 32" LED TV, exterior
- 22" LED TV, (2)each bunk w/ easy access HDMI jack (N/A 34A)
- JBL Soundbar w/integrated sub & bluetooth
- Roof mount Winegard Trav'ler satellite prep
- Park/cable prep
- High Definition Cat6 matrix signal distribution
- Hi-Definition digital TV antennae
- Upconverting DVD player
Interior
- 12 x 24 vinyl tile throughout
- Semi gloss hardwood - cabinetry, interior doors & slideout fascia
- Hardwood raised panel cabinet doors throughout
- Hidden hinges and décor style cabinet hardware
- Living room ceilling crown Trim
- Carpeted slide-outs w/applicable
- Window Valances
- Visionary hide a bed sofa (N/A 340BH)
- J-Knife sofa (340BH Only)
- Polished solid surface kitchen/dinette c-tops w/flush sink & stove covers
- Full extension ball bearing metal drawer guides
- Galley storage compartment for range and sink covers
- Kitchen Pantry (N/A 340BH)
- Bi-fold doors w/bunk beds (N/A 34A)
- Dream booth dinette w/ storage underneath
- “Soft Touch” padded ceiling
- Roller style day/night shades
- Dresser drawers and wardrobe bedroom cabinetry
- 72" x 80" Queen pillow top bed w/décor bedding
- Bed night stands , 1 w/dual USB jack & overhead cabinetry
- Mirrored vanity overhead cabinetr doors
- Towel bar, toilet paper holder & towel ring
- LP gas, carbon monoxide & smoke detectors
- Fire extinguisher
- Lighted step well
Appliances
- 15,000 btu w/heat pump(front) & 15,000 btu(rear) low profile A/C's
- Holding tank heat pads
- Truma continous flow hot water
- 35,000 BTU furnace (N/A 38C)
- 42,000 BTU furnace (38C Only)
- 30" OTR convection microwave oven
- 2 Door residential refrigerator
- Sealed 3-burner stainless recessed cook top
- Power fan in bathroom w/rain cover
- Maxxair in galley w/wireless remote control w/rain cover
- Washer/dryer prep (N/A 340BH)
Options
- Stackable washer/dryer (340BH Only)
- Electric Easy-Bed lift, cockpit Area
- Vinyl wood plank flooring IPO 12 x 24 vinyl tile
- Theater Seating, IPO of standard Sofa (34A Only)
See us for a complete list of features and available options!
All features and specifications are subject to change.
